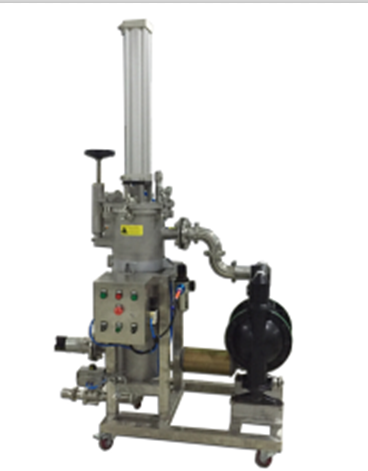

| Equipment Name设备名称 | 威世达全自动高效气缸驱动刮刀式自清洗过滤器 |
| Filter Type过滤器类型 | 全自动过滤器vstar |
| Process Requirement工艺要求 |
| Fluid流体名称 | 水性漆、胶黏剂 |
| Fluid Type流体形态 | Liquid液体 |
| Oper. Temp.操作温度(°C) | 60 |
| Oper. Pressure操作压力(MpaG) | 0.500 |
| Flowrate流量(m3/h) | 12.0 |
| Density密度(kg/m3) | 1.1 |
| Rating过滤精度(μm) | 150 |
| Viscosity粘度(cp) | 3000 |
| Max. D.P. When Clean清洁时最大压降(MPa) | 0.000 |
| Max. D.P. When Dirty堵塞时最大压降(MPa) | 0.050 |
| Filter Element Specification单机滤元规格 |
| Element P/N滤元型号 | 316-150-1.2 |
| Filtration Type过滤类型 | Intercepting Filter表面过滤 |
| Element Size滤元尺寸(mm) | Φ220X650 |
| Stand-Alone Flowrate单机流量(m3/h) | 12.00 |
| Element Rating滤元精度(μm) | 150 |
| Element Filter Area滤元过滤面积(m2) | 0.43 |
| Element Qty.滤元数量 | 1 |
| Total Area Per Filter单机总面积(m2) | 0.43 |
| Element Load滤元负荷(m3/h·m2) | 16.00 |
| Element Material滤元材质 | SS316L |
| Element End Cap Material滤元接口材质 | SS304 |
| Initial Design D.P.初始设计压降(MPa) | 0.010 |
| Max. Design D.P.设计最大压降(MPa) | 0.200 |
| Self-Cleaning D.P.自清洗压降(MPa) | 0.050 |
| Filter Housing Specification过滤器壳体规格 |
| Filter Qty.过滤器数量 | 1 |
| Standard参考标准 | GB150 |
| Design Pressure设计压力(Mpa G) | 1.00 |
| Corrosion allowance腐蚀余度(mm) | 0 |
| Design Temp.设计温度(°C) | 200 |
| Lid Opening Type上盖开启形式 | Quick Open快开式 |
| Lid Easy Lift Device上盖轻松提升装置 | Have有 |
| Mounting安装形式 | Vertical立式 |
| Housing Wet Part Material壳体接液部位材质 | SS304 |
| Bolt and Nut Material螺栓螺母材质 | SS304 |
| Support Leg Material支脚材质 | SS304 |
| Sealing Type密封件形式 | Quick OpenO型圈 |
| Sealing Material密封件材质 | VITON |
| Internal Surface Finish内表面处理 | 120 mesh polish120目打磨 |
| External Surface Finish外表面处理 | Bead blasted喷砂亚光 |
| Filter Nozzle and Couplings过滤器管口及连接方式 |
| Inlet & Outlet Connection Type进出口连接形式 | 快接卡箍 |
| Inlet & Outlet Connection进出口连接标准 | HG-20592-2009 |
| Inlet & Outlet Flange Rating进出口法兰等级 | PN1.0 |
| Inlet & Outlet Nozzle Size进出口管口尺寸 | DN50 |
| Drain Connection Type排污口连接形式 | 内丝 |
| Drain Connection Standard排污口连接标准 | HG-20592-2009 |
| Drain Flange Rating排污口法兰等级 | PN1.0 |
| Drain Nozzle Size排污口管口尺寸 | DN40 |
| Vent Connection Type放空口连接形式 | Internal Thread内螺纹 |
| Vent Connection Standard放空口连接标准 | NPT |
| Vent Nozzle Size放空口管口尺寸 | 1/2" |
| Driving Device Specification驱动装置参数 |
| 驱动装置Driving Device | 气缸 |
| Driving Shaft Sealing驱动轴密封材质 | 轴封 |
| Scraping Assembly刮除组件 |
| Scraper Qty.刮刀数量 | 1 |
| Scraper Material刮刀材质 | PTFE |
| Scraper Design Temp.刮刀设计温度(°C) | 260 |
| P.S.Specification其他参数 |
| Power使用电源 | AC220V/50Hz |
| Air使用气源 | 0.4-0.8mpa |
